HW-G9/G10 4 HEAD CONCRETE FLOOR GRINDER

Category

KEY FEATURES

Planetary design, four grinding plates,1056lbs.

Less vibration, less worker’s fatigue.

Automatic level pressure adjust control system.

Ultra low center of gravity, more stable.

Recommended dust extractor: PF-V5.

Recommended generator: 56kw.

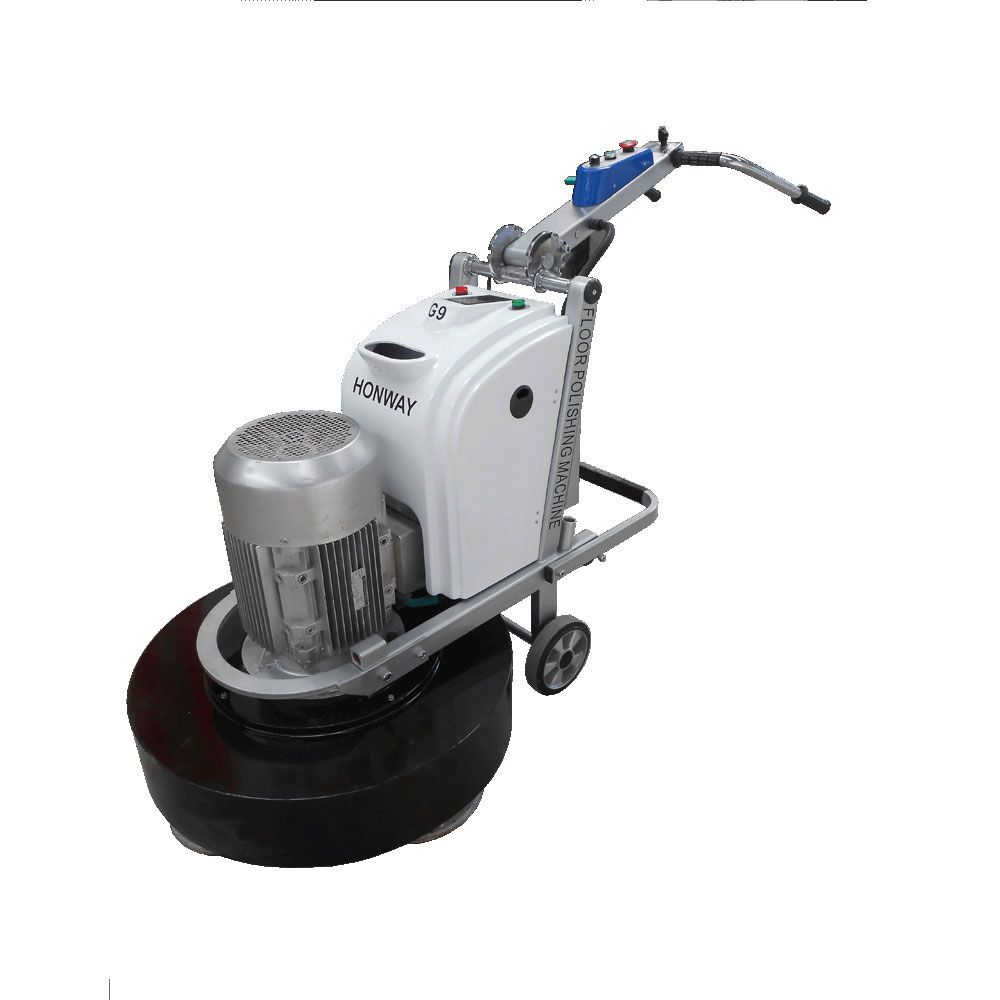

HW-G9/G10 4 HEAD PLANETARY CONCRETE FLOOR GRINDER

HW-G9 is a 4 head planetary floor grinder with an all gear drive system. Its operation has less vibration than planetary grinder with three grinding plates. The working effectiveness improves 30%. Four heads grinder exerts stronger power to grinding head and operates more smooth and steady on wavy surface when comparing with three heads grinder. Four heads machine grinds floor more evenly. The machine is more stable and less vibrate.

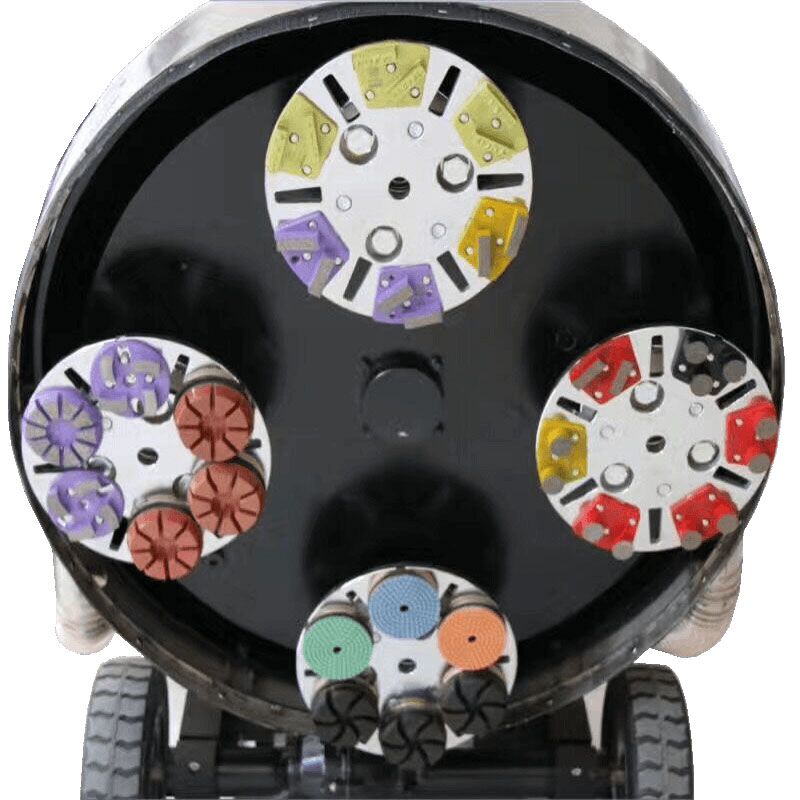

HW-G10, 10hp, grinding width 600mm, 4 grinding plates, 12 pieces of diamond tool. With the magnetic disk and Velcro, It is very easy and shift to change diamond tool. The design of square disc plate could 100% touch wall and grind corner.

APPLICATION

Removing surface imperfections and contaminants.

Smooth or flatten concrete slabs–including curled expansion joints.

Grinding and Polishing Concrete, Terrazzo, natural and artificial stone.

TECHNICAL SPECIFICATION

Model HW-G9A HW-G9B
Voltage 380-440 V 3~ 220-240 V 1~
Motorpower 18.5kw(25hp) 18.5kw(25hp)
Frequency 50/60HZ 50/60HZ
Inverter 20kw(27hp) 25kw(34hp)
Current 30A 52A
Grinding disc speed 0-900rpm 0-900rpm
Grinding disc 4×280 mm / 3×11″ 4×280 mm / 3×11″
Grinding width 650mm(25.5″) 650mm(25.5″)
No.of diamond 9pcs 9pcs
Extra weight 25kg(55lbs) 25kg(55lbs)
Water tank 20L 20L
Weight 480kg(1056lbs) 480kg(1056lbs)
L*W*H 1020*780*1100mm 1020*780*1100mm

DIAMOND TOOLS

VIDEO

DOWDLOAD OUR GRINDING GUIDE!

Honway are a manufacturer of floorgrinding-, surfacefinishing and polishing equipment. We have a wide range of grinding and polishing machines and dust extractors.
