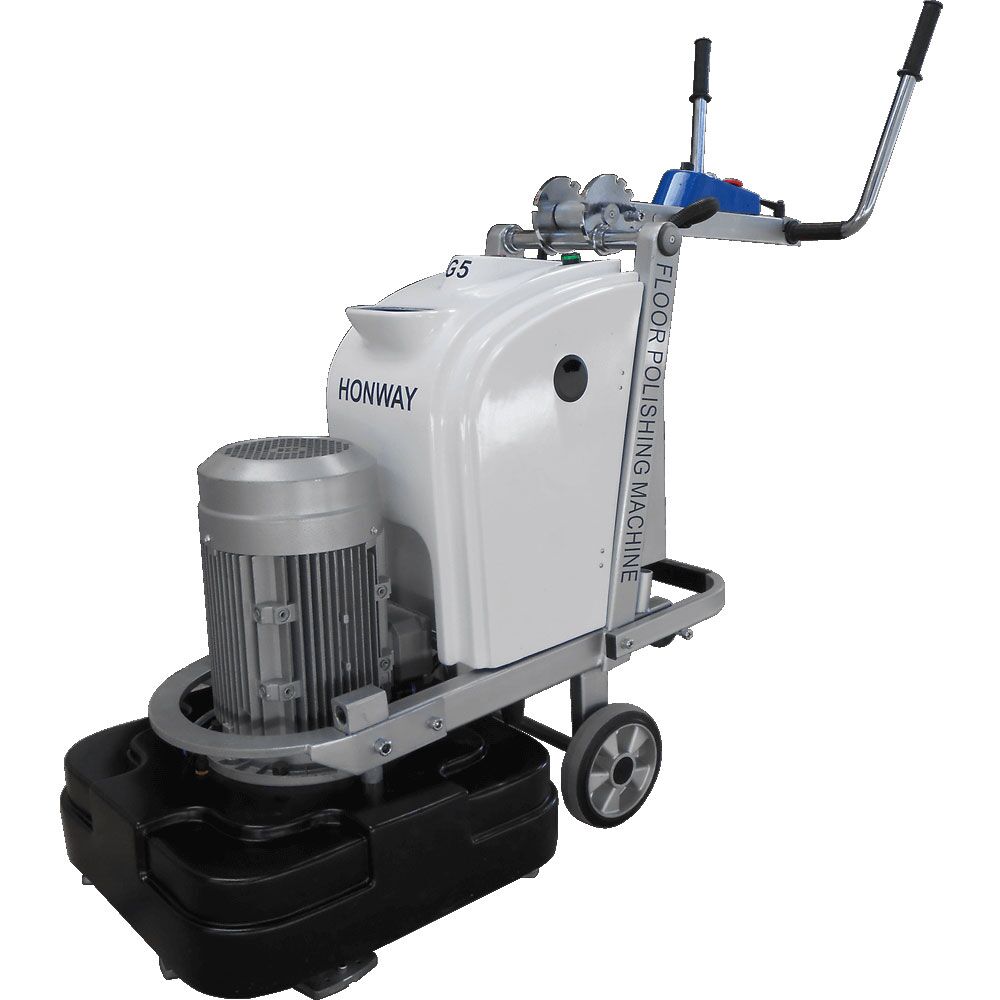

HW-G5/G7 SQUARE PLATES CONCRETE GRINDER

Category

KEY FEATURES

Non planetary design, heavy duty, no vibration.

Four grinding plates, Lower center of gravity.

New design of unibody gear box.

100% power transmission, direct connection.

Recommended dust extractor: SP-D3.

Recommended generator: 23kw.

HW-G5/G7 SQUARE PLATES CONCRETE GRINDER

HW – G5 not leave blank area on floor, as the four disc plates cross and match very well. It is 600mm, with 10hp, suitable for middle to large floor area. Variable speed machine provides you with more versatility and control on the grinding work.

The gear box G5 is unibody design, in which the cover is all in one shape with gear box. The overall weight is focused on the grinding disc, which is beneficiary for cutting and grinding rough floor .

APPLICATION

For coarse grinding, medium grinding, fine polishing, crystallizing, preparation, maintenance of all kinds of floor;

Remove painting, coating, epoxy, urethane, glue, polyurethane, mastic with PCD tools on all kinds of floor.



TECHNICAL SPECIFICATION

Model HW-G5 HW-G7
Power 220/380V 7.5KW 380V/11KW
Hertzs 50/60HZ 50/60HZ
Inverter 7.5KW 11KW
Current 27.0/15.6A 21.9A
Plate Speed 300-1800rpm 300-1800rpm
Work Area 600mm 700mm
Disc Diameter 320mm*4pcs 370mm*4pcs
Water Tank 30L 30L
Weight 265KG 300KG
L*W*H 930*600*950mm 930*700*1050mm

ADVANTAGES

Stable transmission device: the motor power can be 100% transmitted to the grinding plates and the torque is enhanced.

Unibody gear box: no gear box ‘s cover anymore, the weight of the gear box increases which increases the grinding efficiency.

Motor and gear box are directly connected: reduce the machine’s vibration, lower the noise, increases the flatness after grinding.

12 pcs of grinding pads: cross-running, grinding without leaving the gap.

Super motor: big capacitance, built-in current overload /leakage protection.

Extended pedal: a person can complete finish the replacement of the grinding pads alone.

DOWDLOAD OUR GRINDING GUIDE!

Honway are a manufacturer of floorgrinding-, surfacefinishing and polishing equipment. We have a wide range of grinding and polishing machines and dust extractors.
