HWS200 CONCRETE SCARIFIER

KEY FEATURES

Original HONDA engine-the guarantee for the machine heart.

Zero-depth height adjustment.

long-life tungsten carbide cutters.

Heavy-duty hex shaft, sealed bearings and toothed belt.

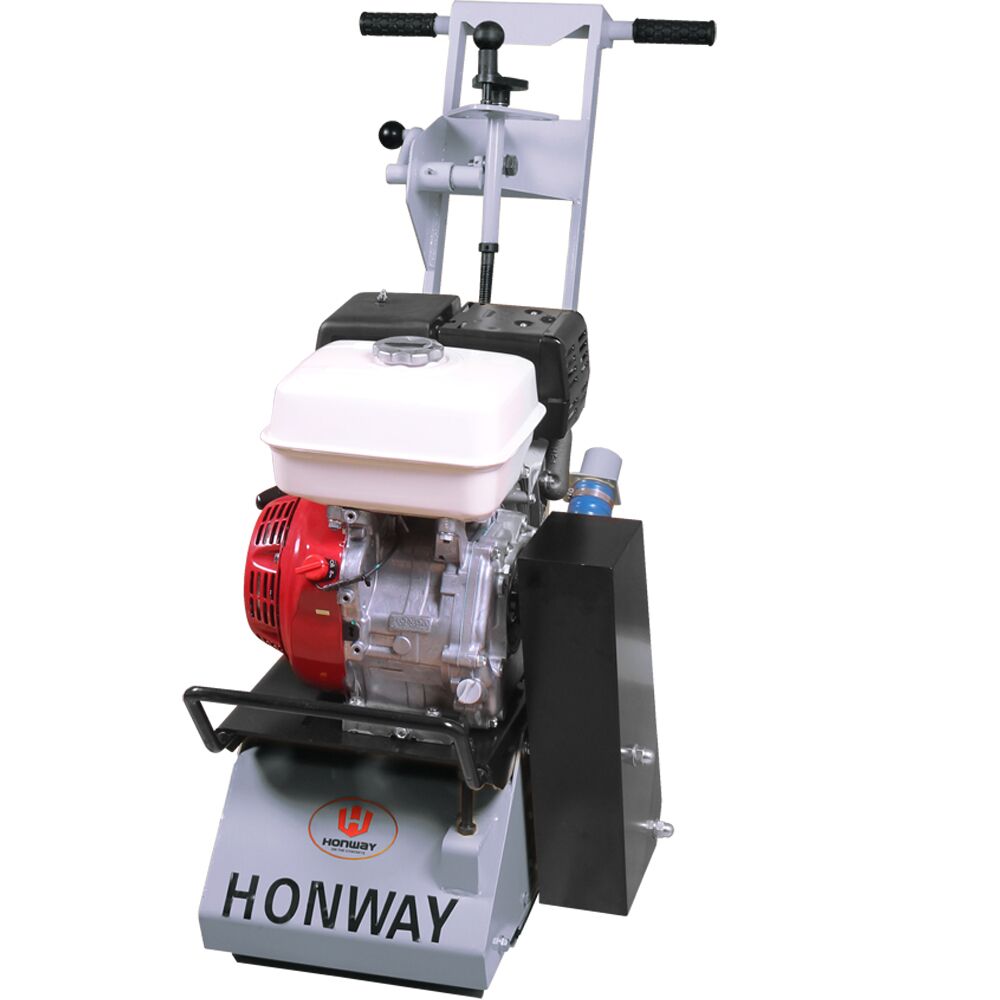

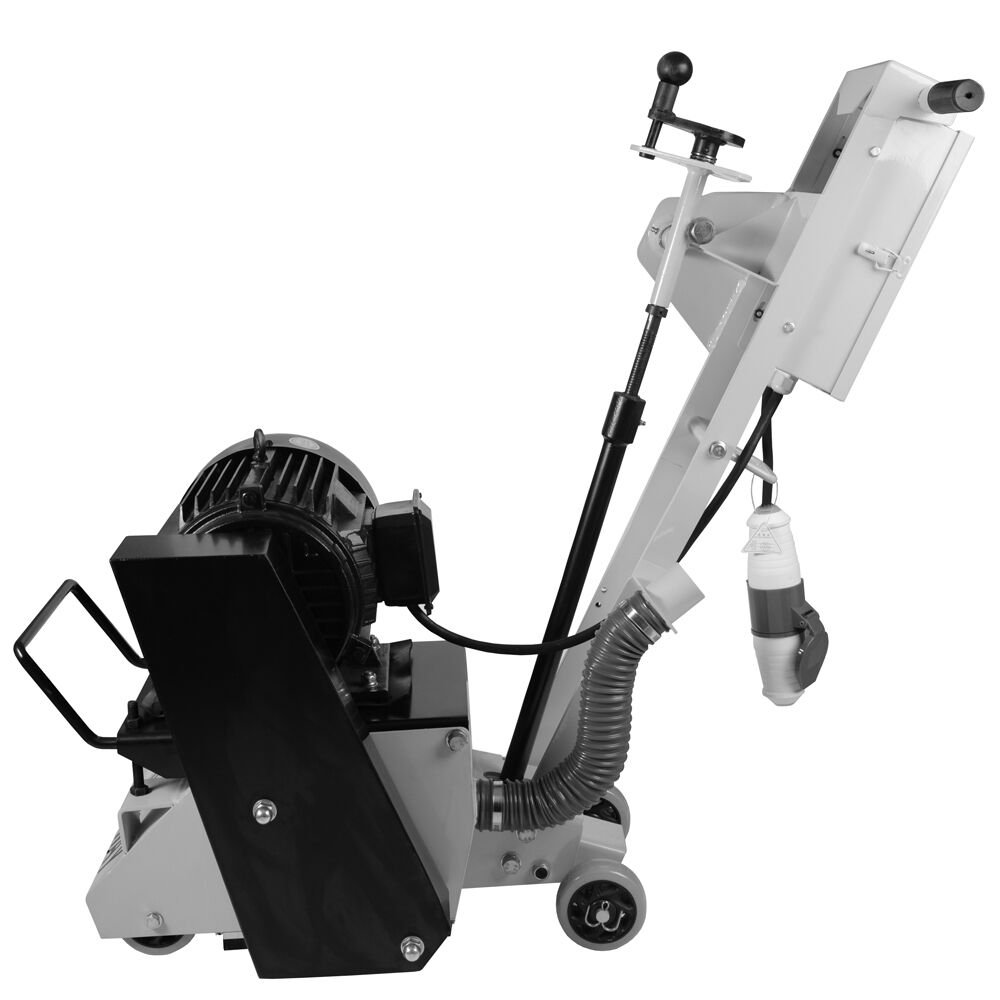

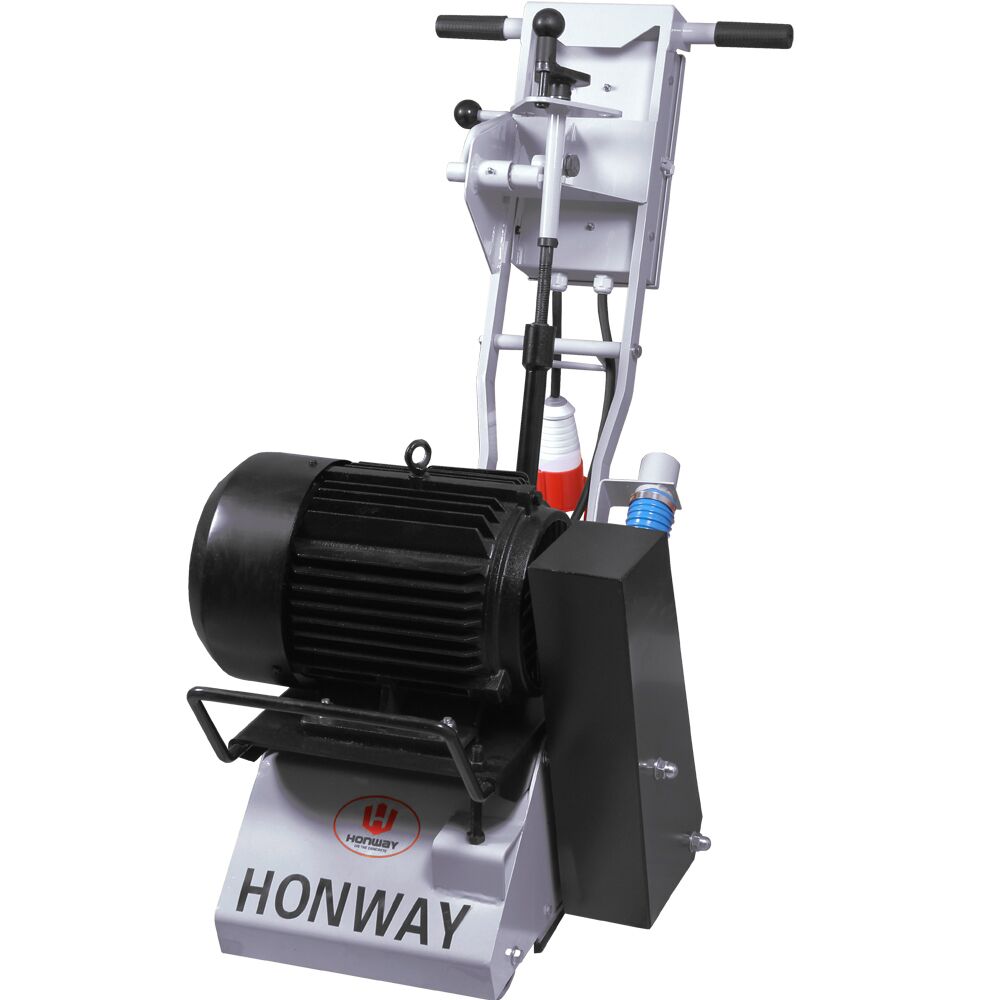

HWS200 PUSH MODEL CONCRETE SCARIFIER

The concrete scarifier’s drum with TCT cutters rotates forward at very high speed; which swings the group of cutters crashes the floor, therefore the carbide tungsten tips on the cutters mill, plan, scarifying concrete, asphalt, and epoxy resin on the floor surface.

HWS200 has a drum design, zero depth height adjustment, better balance and less vibration, and side-entry roller components. There are heat treated hardened hexagonal shaft, sealed bearing and toothed belt.

Featured accessories include carbide (TCT), ripper drum and shaft, and Honway vacuum device.

8” 200mm scarify floor maximum 350-500sq.ft. depth at 1/8” per pass per hour.

Chip traffic line at 800-1000 lineal ft per hour.

APPLICATION

Removing traffic line and coatings.

Small, narrow areas or edges.

Sidewalk repair.

Floor preparation or cleaning.

Creating nonslip surfaces.

TECHNICAL SPECIFICATION

Model HWS200E HWS200G
Power  380-440 V 3~ /5.5kw(7hp) Gasoline 6.6kw(9hp)
Working width 200mm / 8″ 200mm / 8″
Working depth 1-3mm 1-3mm
Drum rotation Down cut(clockwise) Down cut(clockwise)
Drum assembly Changeable Changeable
Drum of shaft 6pcs 6pcs
Drum of cutter 78pcs 78pcs
Machine weight 105kg(231kbs) 120kg(265lbs)
Machine size 1100*530*970mm 1100*530*970mm
Walking way Push model Push model

ADVANTAGES

Good heart of the machine: Honda (made in Honda factory in China, not copy one), gasoline, 4 strokes. Pure copper electrical motor, 380v, three phrases, built-in overload protection, leakage protection, phase loss protection.

Specially Heated and welded drum and shafts, which affords the high speed rotation of heavy duty drum sets.

Tungsten carbide cutters, 45CrMo, first hand cobalt, long life.

The design for bearing base is for overload of drum rotation.

The scarifying depth can be adjusted.

The brushes of four sides and vacuum port.

SCARIFIER CUTTERS

DRUM AND SHAFT

DOWDLOAD OUR GRINDING GUIDE!

Honway are a manufacturer of floorgrinding-, surfacefinishing and polishing equipment. We have a wide range of grinding and polishing machines and dust extractors.
