Three motors, 3.6kw, 220v& 110v, a single phrase;
Unique jet pulse filter cleaning;
Two stage filter, HEPA;
Pull-down Longopac system for dust collection.

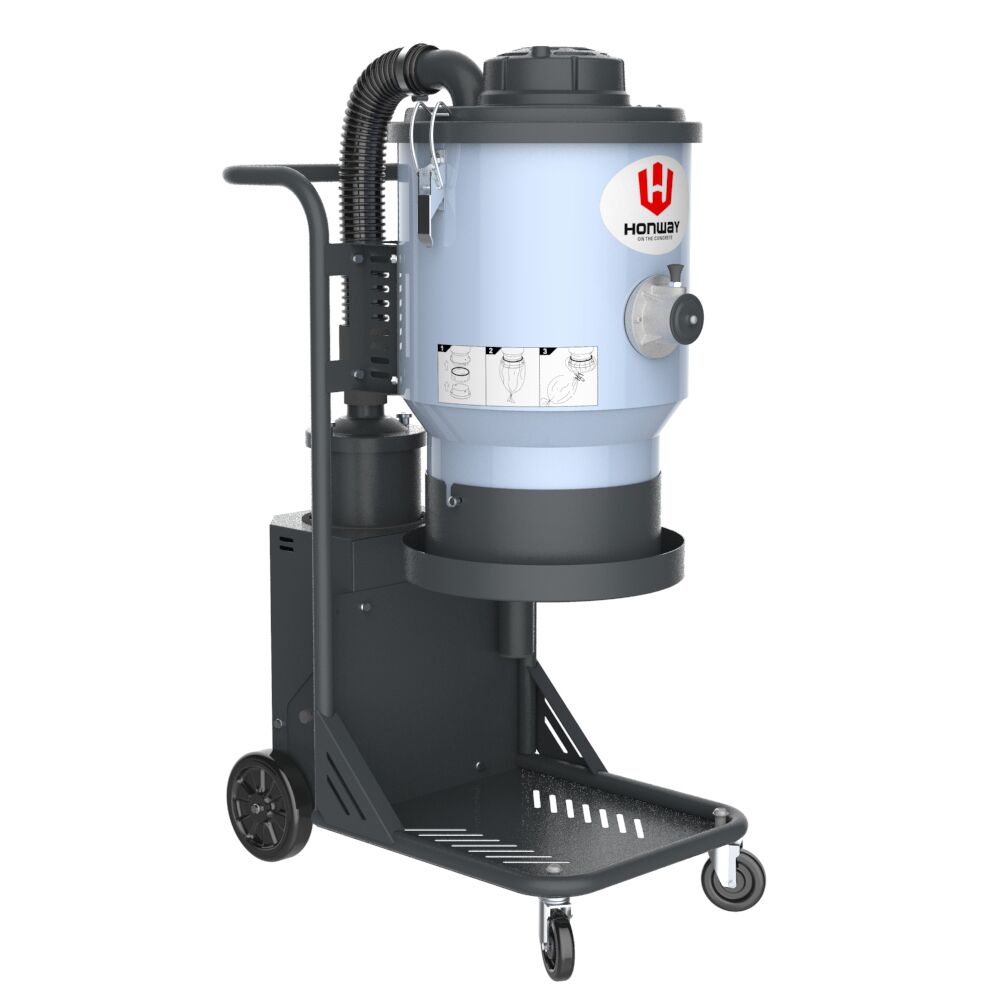

The Honway SP-D3 is the most powerful 110 dust extractor in the industry. It features a heavy steel frame with Honway Pull-down Longopac system with 60′ of a continuous dust bag for the dustless environment. It is versatile as it allows 3” or 2” hose connected to any grinder.
The filter area of the first-grade filter is 4.2 m2, and the H13 filter area is 3.6 m2. With 3 pieces of Ametek large motors, SF-D3 has enough power for any medium or large size concrete floor grinder, concrete floor scarifier, floor shot blasting machine, for suction the concrete floor dust. Certified HEPA filters (0.3 microns) reach 99.99% to ensure that the vacuum exhaust is absolutely dust-free. SF-D3 comes with a complete tool kit including hoses, rods, and floor tools.
| Model | A | B |
| Voltage | 220v-240v, 1P,50/60HZ | 110v, 1P,60HZ |
| Power | 4.8HP / 3.6KW | 3.2HP / 2.4KW |
| Current | 12A | 19.5A |
| Air Flow | 354cfm | 285cfm |
| Vacuum | 220mbar | 220mbar |
| Premier Filter | 4.5 m² >99.5% @1.0um | 4.5 m² >99.5% @1.0um |
| Hepa Filter H13 | 3.6m² >99.99% @0.3um | 3.6m² >99.99% @0.3um |
| Filter Cleaning | Jet pulse filter cleaning | Jet pulse filter cleaning |
| Dust Type | Longopac bag | Longopac bag |
| Dimension | 630*840*1470mm | 630*840*1470mm |
| Weight | 65KG/ 143lbs | 65KG/ 143lbs |
| Hose Port | 50mm | 50mm |
1, H13 HEPA filter which conforms to OSHA;
2, Continuous bagging system ensures quick and dust-free bag changes;
3, Unique jet pulse filter cleaning-two stage filtration system;
4, Schneider circuit breaker, with thermal overload and short circuit protection.
Honway are a manufacturer of floorgrinding-, surfacefinishing and polishing equipment. We have a wide range of grinding and polishing machines and dust extractors.
