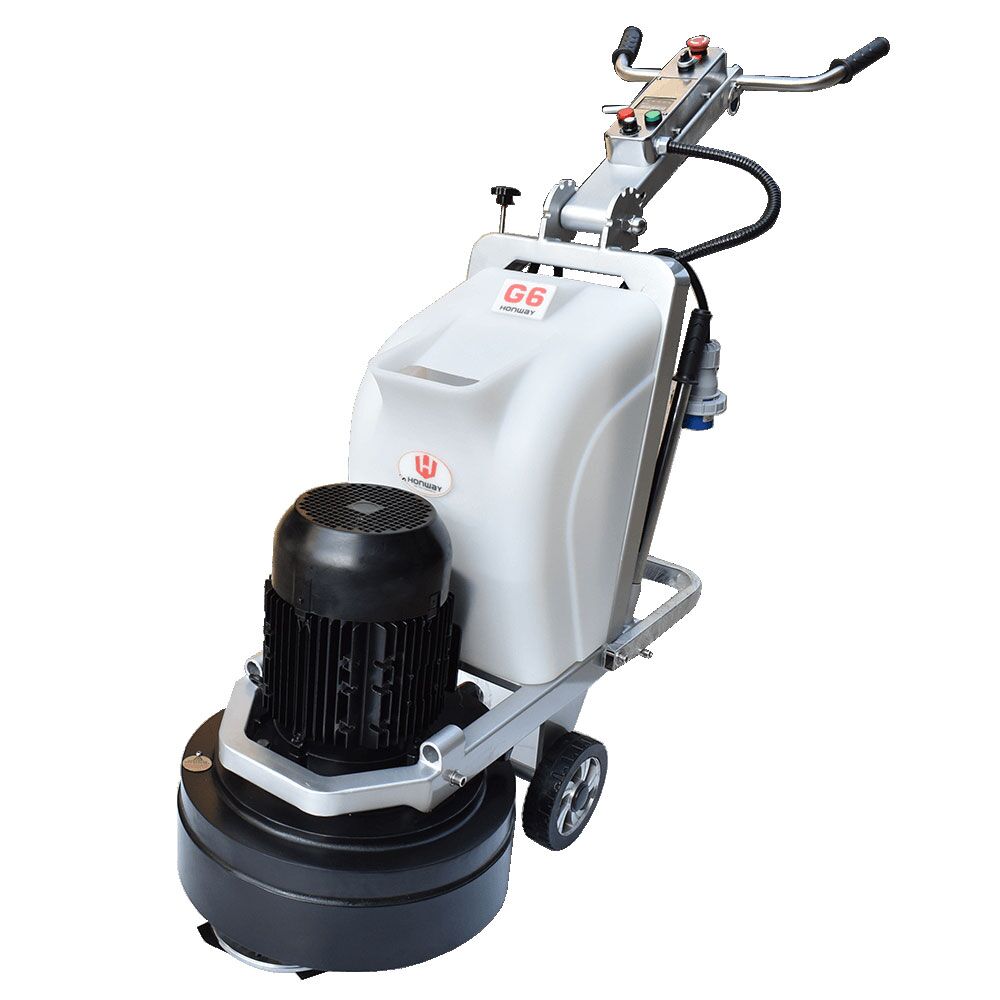

HW-G6 CONCRETE SURFACE GRINDER

Category

KEY FEATURES

Planetary, 25.5”, 616lbs,professional grinder.

Reasonable gear ratio, suitable torque transmission.

Well designed sealing system for gear box.

Speed is adjustable from 0-900 rpm.

Recommended dust extractor: SP-D3.

Recommended generator: 12kw.

HW-G6 220V 380V CONCRETE SURFACE GRINDER

25.5 ” grinding width is suited for middle to large size floor surfaces. With the rigorous designed electrical system, it can be applied for single phrase, 220-240v; Planet disc plates rotate conversely, creating a finer, denser, and more exquisite floor.

One of Honway design principle is: easy to maintain for users. Every parts of the machine can be assembled and dissembled like building block. With a few common tools, you could enter into the machine heart easily.

APPLICATION

Removing Painting, Coating, Epoxy and Glue.

Old Floor Removal, Restoration, Renovation, etc.

Provides ideal preparation for thin film coating.





TECHNICAL SPECIFICATION

Model HW-G6A HW-G6B
Voltage 380-440 V 3~ 220-240 V 1~
Motorpower 7.5kw(10hp) 7.5kw(10hp)
Frequency 50/60HZ 50/60HZ
Inverter 9kw(12hp) 11kw(15hp)
Current 15A 28A
Grinding disc speed 0-900rpm 0-900rpm
Grinding disc 3×250 mm / 3×10″  3×250 mm / 3×10″
Grinding width 650mm(25.5″) 650mm(25.5″)
No.of diamond 9pcs 9pcs
Extra weight 25kg(55lbs) 25kg(55lbs)
Water tank 20L 20L
Weight 280kg(616lbs) 280kg(616lbs)
L*W*H 970*650*850mm 970*650*850mm

ADVANTAGES

Bearing: If the concrete grinder has bearing damage, it will cause bigger noise, the output shaft would shake, and the gear box would also shake. HONWAY uses famous brand-Japan NSK, famous brand.

Wire: pure copper wire core; good performance in electrical conductivity, load capacity, waterproof. Enough length and enough size of the wire ensures electricity safety.

Casters: concrete grinder often affords the weight up to hundreds of kilograms, so G6 use polyurethane heavy-duty casters, with good performance on wear-resistant and shock absorption.

Electrical components: Schneider buttons and switches, IP67 waterproof plug. CE certification.

Additional iron weight: 25kg, increases the grinding pressure; The dustproof shroud touches floor closely to reduce dust.

Vacuum port: Equipped with vacuum port 2” and the water tank, for dry and wet grinding.

DIAMOND TOOLS

VIDEO

DOWDLOAD OUR GRINDING GUIDE!

Honway are a manufacturer of floorgrinding-, surfacefinishing and polishing equipment. We have a wide range of grinding and polishing machines and dust extractors.
