HW-G3 BELT PLANETARY FLOOR GRINDER

Category

KEY FEATURES

Disassembled into two parts, within 30 seconds, without tools.

Planetary drive, single phrase, a versatile floor grinder.

Self adjustable floating cover prevent dust from enter into the work site.

Compacted design, for any SUV cars.

Recommended dust extractor: SP-D2.

Recommended generator: 7kw

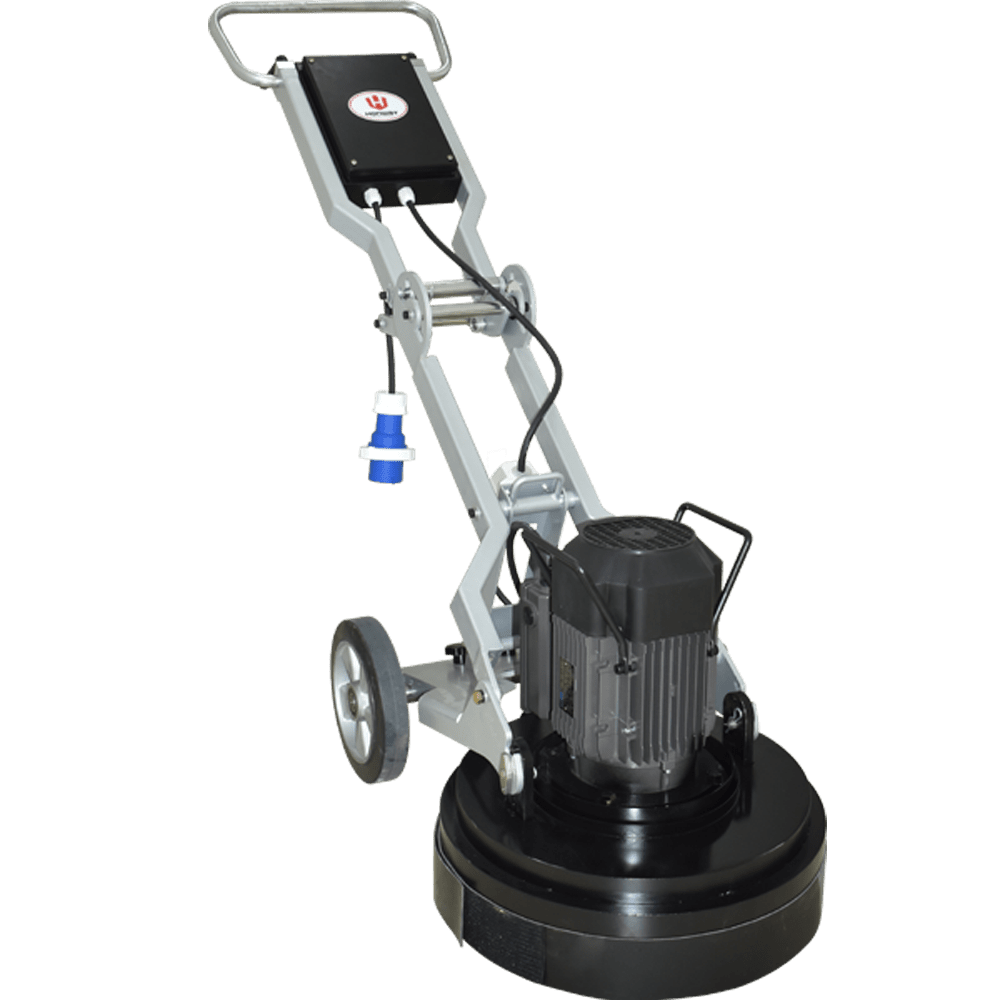

HW-G3 BELT PLANETARY FLOOR GRINDER

HW-G3 belt planetary floor grinder  with three grinding heads, each 7”.  Its applications contains almost all floors from remove floor coatings, level floor surface, to crystallize natural stone and strip wood floor. The machine is compacted design, easy for transportation and storage. The gear box and chassis are apart within 30 seconds, just by hands, no pressure for one person to handle it.

18” grinding width makes it both suitable for large surfaces and small areas which are hard to get in.

APPLICATION

Grinding and smoothing the concrete surfaces.

Grinding concrete floor high spots.

Floor surface preparation and renovations.

Floor finish polishing.

TECHNICAL SPECIFICATION

Model HW-G3A HW-G3B
Voltage 110-120 V 1~ 220-240 V 1~
Motorpower 1.5kw(2hp) 2.2kw(3hp)
Frequency 60HZ 50/60HZ
Inverter
Current 18.8A 12.7A
Grinding disc speed 0-575rpm 0-720rpm
Grinding disc 3×180 mm / 3×7″  3×180 mm / 3×7″
Grinding width 450mm(18″) 450mm(18″)
No.of diamond 9pcs 9pcs
Weight 120kg(264lbs) 120kg(264lbs)
L*W*H 1100*500*1200mm 1100*500*1200mm

ADVANTAGES

Single phrase, 17A, suitable for maximum current on 220v for all countries.

The floating hood floats along with the uneven floors

Easy to collapse and transport, as foldable frame and dividable parts.

User-friendly logical control panel with Schneider overload protection.

Variable speed is an alternative.

DIAMOND TOOLS

VIDEO

DOWDLOAD OUR GRINDING GUIDE!

Honway are a manufacturer of floorgrinding-, surfacefinishing and polishing equipment. We have a wide range of grinding and polishing machines and dust extractors.
