CONCRETE FLOOR GRINDING PAD

Category

KEY FEATURES

The quality is guaranteed by the combination of superior diamond and extremely durable matrix;

Good result on most types of concrete from soft to very hard;

The good output and performance match perfectly;

Removes stock quickly and save your labor;

Compared with the normal grinding tool, sharpness, water-resistant, work efficiency increased by 30%;

Fast speed, less chipping.

CONCRETE FLOOR GRINDING PAD

HONWAY’s diamond concrete floor grinding pad is a  great tool choice for both soft and hard concrete polishing application. HONWAY’s range of  metal bond concrete floor grinding diamond pads are the result of innovative development and a commitment to providing the best possible options for the professional grinding contractor for different situation and application. From the removal of the rough coatings through to high gloss premium polishing.

APPLICATION

The grinding pads are widely use in concrete, marble or terrazzo floor surface preparation, removing the floor coatings, grinding and leveling the uneven floor.

ADVANTAGES

1, The quality is guaranteed by the combination of superior diamond and extremely durable matrix;

2, Good result on most types of concrete from soft to very hard;

3, The good output and performance match perfectly;

4, Removes stock quickly and save your labor;

5, Compared with the normal grinding tool, sharpness, water-resistant, work efficiency increased by 30%;

6, Fast speed, less chipping,best grinding and polishing results.

ABOUT DIAMOND TOOLS

Diamond powder (also known as diamond crystals or grit): By changing the size of the diamond powder or grit, we can change how coarse or fine the scratches which are left behind from the grinding process. A binding agent (metal or resin): Diamond powder is mixed in either a metal or resin binding agent. When mixed with metal binding agent, the finished product is metal bond; when mixed with resin binding agent, the finished product is resin bond/pad. By changing the hardness of the binding agent, we can change how fast or slow the concrete diamond grinding pad will wear.

Changing the size of the diamond grit to a smaller particle / grit size will affect the performance of the diamond tool in the following ways: create a finer scratch pattern, increase life of diamond tool.

The opposite will occur when changing to a large particle / grit size. Binding agent: Increasing hardness of bond will: create a finer scratch pattern, increase life of diamond tool, decrease production rate. The opposite will occur when making the metal or resin bond softer.

How to choose the suitable grinding pads for your floor!

Grinding floor

applications , metal bond, grit size

Honway diamond tools are especially designed for HONWAY machines but also have a proven record of excellent performance with other floor grinders on the market. For different brand of grinding machine: HTC, LAVINA, HUSQVARNA, KLINDEX… the tool system which are popular in the market: quick change system, EZ system, Redi-lock system,Slide on system…

FAQ:

Water grinding could prolong the grinder’s life, and make the floor more smooth and fine. However, water grinding reduce the lifetime of concrete grinding pads. Besides, it produces a lot of mud and sewage. The dry grinding is clean, convenient, and saves tools. But it produce a large amount of dust in the construction site. Therefore, in the stage of leveling and rough grinding ,it is recommended to use the wet grinding (not water grinding), which sprinkle the floor with water . Grind the floor until the water evaporate but the floor is moist. This treatment is especially suitable for very bad floor.

HOW TO CHOOSE THE SUITABLE DIAMOND CONCRETE FLOOR GRINDING PAD FOR YOUR FLOOR?

The concrete will keep the diamond sharp and exposed if the bond is correct for the concrete, and the diamond tools also have best removal rate and the longest service life;

SOFT FLOORS

Soft concrete causes more wears on the tools; so check the tools after 10 mins;

The scope of concrete hardness is C15-C25;

MEDIUM-HARD FLOORS

Normal building concrete;the scope of concrete hardness is C25-C50;

HARD FLOORS

Usually refers to steel toweled floors, hardened concrete floor, certain types of cement. This includes granite. The floors usually require ‘soft’ segments. The scope of concrete hardness is C50-C80;

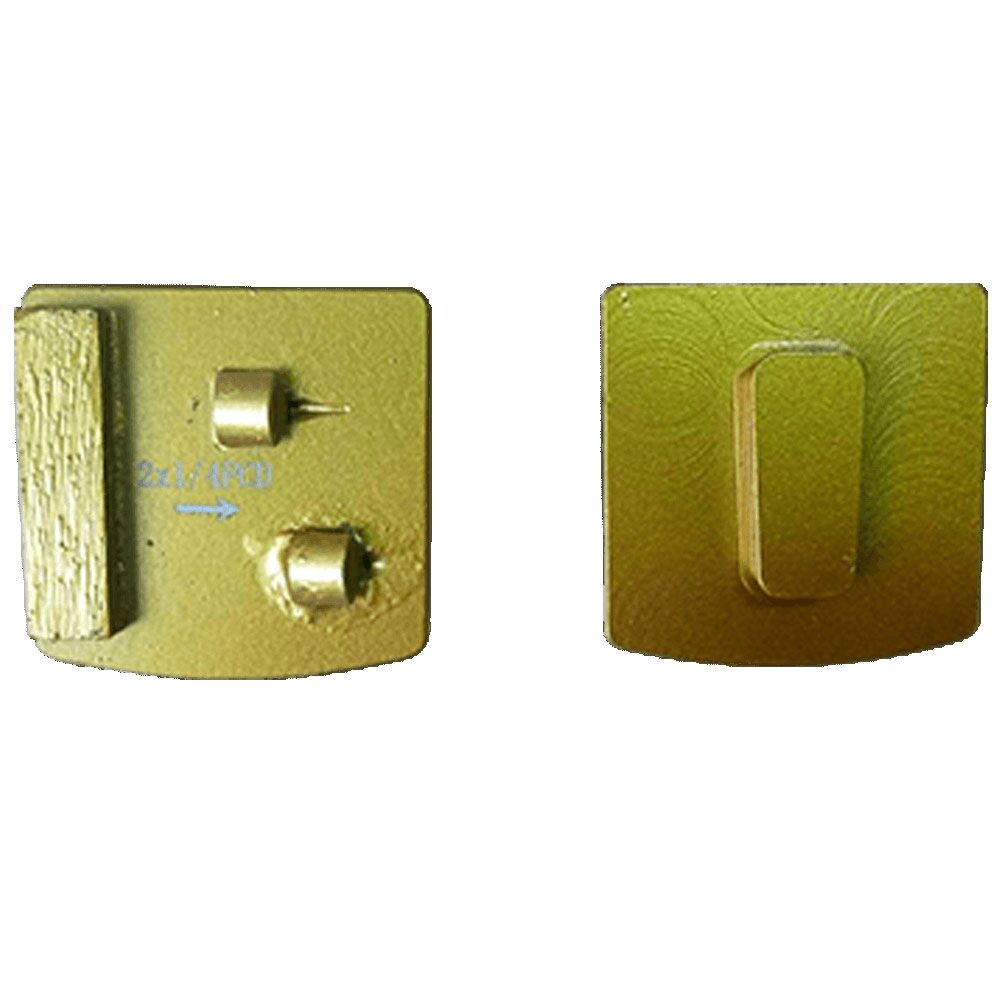

HONWAY G1000 PCD CONCRETE FLOOR DIAMOND GRINDING PADS USE FOR HW-G4/G6/G8/G9/G10

PCD is very sharp; it is designed for quick removal of coatings, such as paint, epoxy, glue from concrete floors as well as flattening bumpy concrete surface.
The special formulated grade of diamond scraper ensures maximum wear and productivity;

pcd for concrete floor grinding

MAGNET AND SCREW HOLDING

Planetary heads rotate on a large disk, with more efficiency;

HONWAY G1100 METAL BOND FLOOR GRINDING DIAMOND PADS FOR HONWAY CONCRETE GRINDER

HONWAY offers a range of metal-bonded diamond concrete floor grinding pad for every application. Every diamond tool has the different bond for soft, medium and hard concrete. The concrete will keep the diamonds sharp and exposed if the bond is correct for the concrete, and the floor diamond grinding pads also have best removal rate and the longest service life.
HONWAY’s tool system is QUICK ATTACK change tool system, instant and hassle-free.

concrete floor grinding pad

MAGNET AND SCREW HOLDING

#20, #30, #60, #120, #150, #300

Soft / medium / hard bond, for hard / medium / soft concrete floor

Diamond bond: 40*12*12mm

Dry or wet grinding

HONWAY G1200 METAL BOND FLOOR GRINDING DIAMOND TOOLS USE FOR HW-G1/G2

Redilock diamond pad for concrete floor grinding

REDILOCK SLIDE ON HOLDING

#20, #30, #60, #120

Soft / medium / hard bond, for hard / medium / soft concrete floor

Diamond bond: 40*12*12mm

Dry or wet grinding



HONWAY OEM METAL BOND DIAMOND CONCRETE FLOOR GRINDING PAD

lavina for concrete floor grinding

SLIDE ON HOLDING

#20, #30, #60, #120

Soft / medium / hard bond, for hard / medium / soft concrete floor

Diamond bond: 40*12*12mm

Dry or wet grinding





TECHNICAL SPECIFICATION

Item NO Grit Shape Bond Hardness Application
C1101 20# R/C Hard C25
C1102 30# R/C Hard C25
C1103 60# R/C Hard C25
C1104 80# R/C Hard C25
C1105 120# R/C Hard C25
C1106 20# R/C Medium Hard C25-C35
C1107 30# R/C Medium Hard C25-C35
C1108 60# R/C Medium Hard C25-C35
C1109 80# R/C Medium Hard C25-C35
C1110 120# R/C Medium Hard C25-C35
C1111 20# R/C Soft C40
C1112 30# R/C Soft C40
C1113 60# R/C Soft C40
C1114 80# Soft Soft C40
C1115 120# Soft Soft C40

ADVANTAGES

1, The quality is guaranteed by the combination of superior diamond and extremely durable matrix;

2, Good result on most types of concrete from soft to very hard;

3, The good output and performance match perfectly;

4, Removes stock quickly and save your labor;

5, Compared with the normal grinding tool, sharpness, water-resistant, work efficiency increased by 30%;

6, Fast speed, less chipping,best grinding and polishing results.

ABOUT DIAMOND TOOLS

Diamond powder (also known as diamond crystals or grit): By changing the size of the diamond powder or grit, we can change how coarse or fine the scratches which are left behind from the grinding process. A binding agent (metal or resin): Diamond powder is mixed in either a metal or resin binding agent. When mixed with metal binding agent, the finished product is metal bond; when mixed with resin binding agent, the finished product is resin bond/pad. By changing the hardness of the binding agent, we can change how fast or slow the concrete diamond grinding pad will wear.

Changing the size of the diamond grit to a smaller particle / grit size will affect the performance of the diamond tool in the following ways: create a finer scratch pattern, increase life of diamond tool.

The opposite will occur when changing to a large particle / grit size. Binding agent: Increasing hardness of bond will: create a finer scratch pattern, increase life of diamond tool, decrease production rate. The opposite will occur when making the metal or resin bond softer.

How to choose the suitable grinding pads for your floor!

Grinding floor

applications , metal bond, grit size

Honway diamond tools are especially designed for HONWAY machines but also have a proven record of excellent performance with other floor grinders on the market. For different brand of grinding machine: HTC, LAVINA, HUSQVARNA, KLINDEX… the tool system which are popular in the market: quick change system, EZ system, Redi-lock system,Slide on system…

FAQ:

Water grinding could prolong the grinder’s life, and make the floor more smooth and fine. However, water grinding reduce the lifetime of concrete grinding pads. Besides, it produces a lot of mud and sewage. The dry grinding is clean, convenient, and saves tools. But it produce a large amount of dust in the construction site. Therefore, in the stage of leveling and rough grinding ,it is recommended to use the wet grinding (not water grinding), which sprinkle the floor with water . Grind the floor until the water evaporate but the floor is moist. This treatment is especially suitable for very bad floor.

HOW TO CHOOSE THE SUITABLE DIAMOND CONCRETE FLOOR GRINDING PAD FOR YOUR FLOOR?

The concrete will keep the diamond sharp and exposed if the bond is correct for the concrete, and the diamond tools also have best removal rate and the longest service life;

SOFT FLOORS

Soft concrete causes more wears on the tools; so check the tools after 10 mins;

The scope of concrete hardness is C15-C25;

MEDIUM-HARD FLOORS

Normal building concrete;the scope of concrete hardness is C25-C50;

HARD FLOORS

Usually refers to steel toweled floors, hardened concrete floor, certain types of cement. This includes granite. The floors usually require ‘soft’ segments. The scope of concrete hardness is C50-C80;

HONWAY G1000 PCD CONCRETE FLOOR DIAMOND GRINDING PADS USE FOR HW-G4/G6/G8/G9/G10

PCD is very sharp; it is designed for quick removal of coatings, such as paint, epoxy, glue from concrete floors as well as flattening bumpy concrete surface.
The special formulated grade of diamond scraper ensures maximum wear and productivity;

pcd for concrete floor grinding

MAGNET AND SCREW HOLDING

Planetary heads rotate on a large disk, with more efficiency;

HONWAY G1100 METAL BOND FLOOR GRINDING DIAMOND PADS FOR HONWAY CONCRETE GRINDER

HONWAY offers a range of metal-bonded diamond concrete floor grinding pad for every application. Every diamond tool has the different bond for soft, medium and hard concrete. The concrete will keep the diamonds sharp and exposed if the bond is correct for the concrete, and the floor diamond grinding pads also have best removal rate and the longest service life.
HONWAY’s tool system is QUICK ATTACK change tool system, instant and hassle-free.

concrete floor grinding pad

MAGNET AND SCREW HOLDING

#20, #30, #60, #120, #150, #300

Soft / medium / hard bond, for hard / medium / soft concrete floor

Diamond bond: 40*12*12mm

Dry or wet grinding

HONWAY G1200 METAL BOND FLOOR GRINDING DIAMOND TOOLS USE FOR HW-G1/G2

Redilock diamond pad for concrete floor grinding

REDILOCK SLIDE ON HOLDING

#20, #30, #60, #120

Soft / medium / hard bond, for hard / medium / soft concrete floor

Diamond bond: 40*12*12mm

Dry or wet grinding



HONWAY OEM METAL BOND DIAMOND CONCRETE FLOOR GRINDING PAD

lavina for concrete floor grinding

SLIDE ON HOLDING

#20, #30, #60, #120

Soft / medium / hard bond, for hard / medium / soft concrete floor

Diamond bond: 40*12*12mm

Dry or wet grinding





DOWDLOAD OUR GRINDING GUIDE!

Honway are a manufacturer of floorgrinding-, surfacefinishing and polishing equipment. We have a wide range of grinding and polishing machines and dust extractors.
