HWS250 CONCRETE FLOOR PLANER

KEY FEATURES

Working width: 250 mm; Working depth: 10 mm.

Original HONDA engine-the guarantee for the machine heart.

Easy to change the drum assembly in a few minutes.

Side access drum assembly for quick and easy cutter changes..

Well designed for better balance and less vibration.

Milling depth can be accurately adjusted.

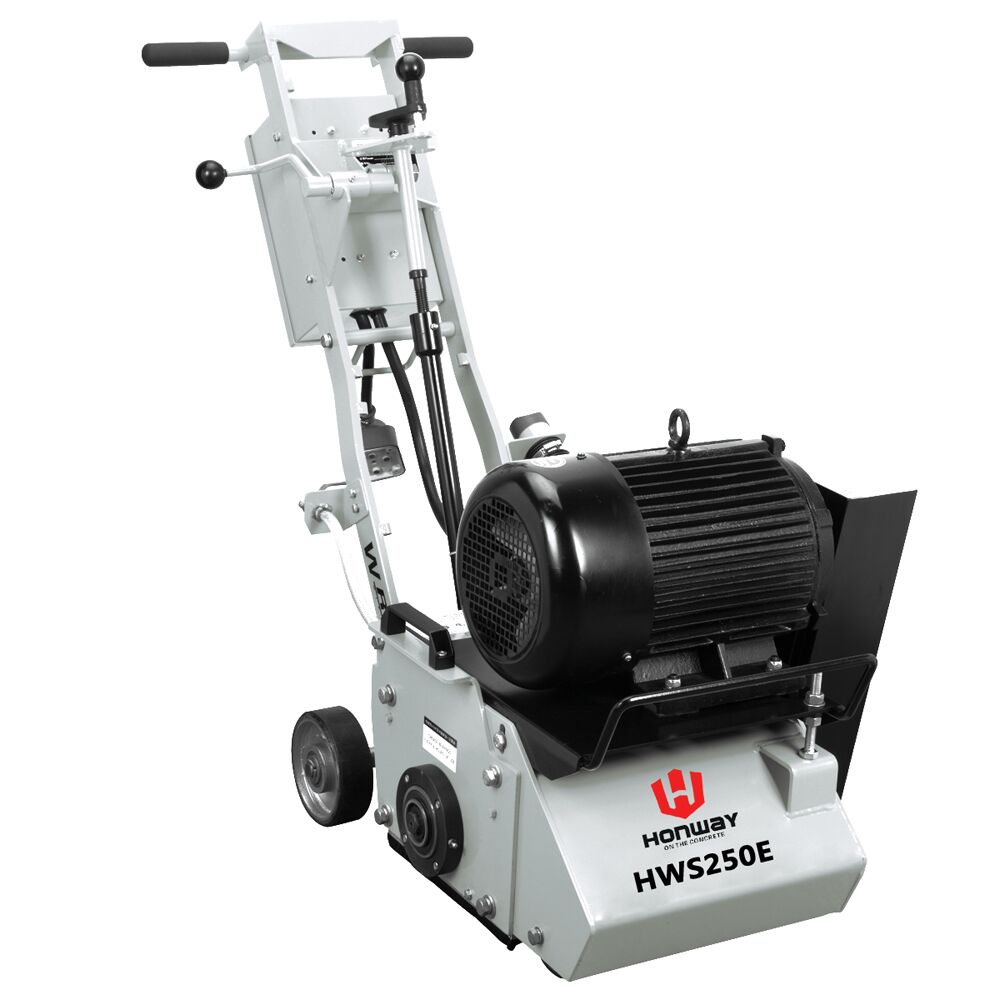

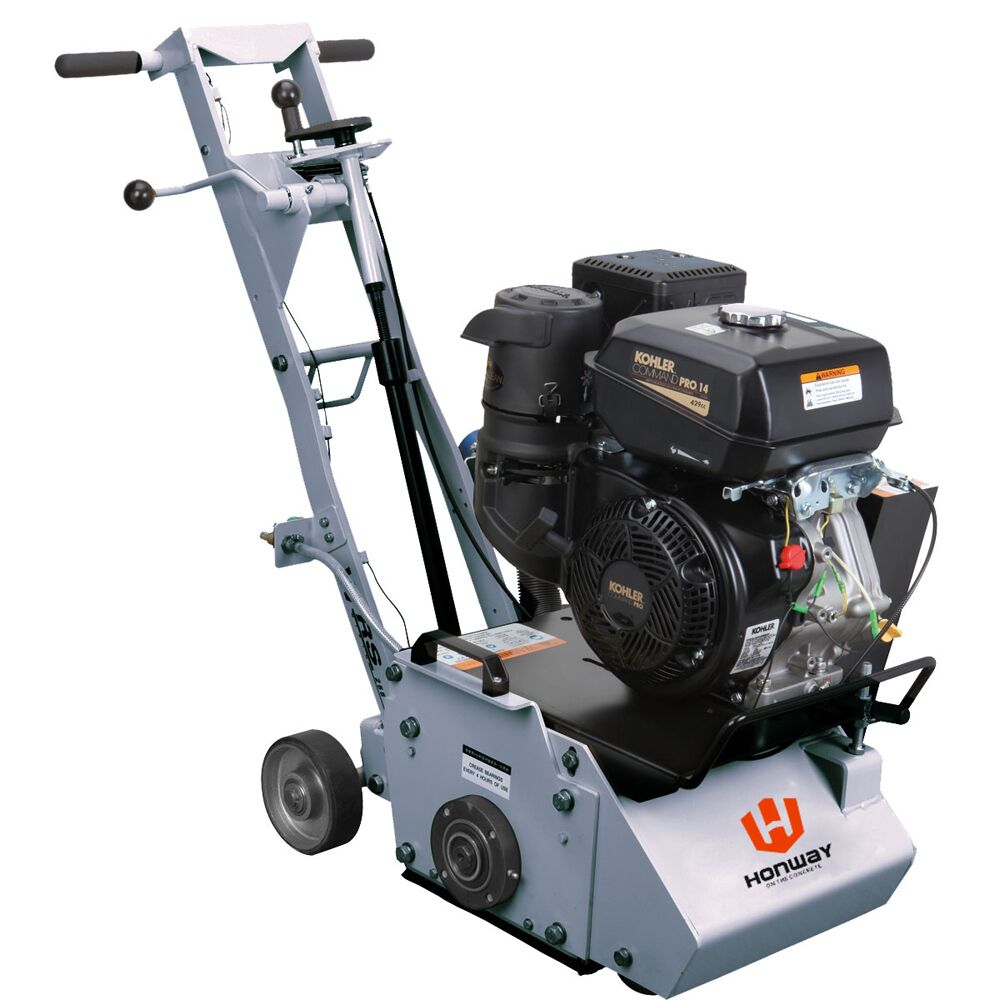

HWS250 WALK BEHIND CONCRETE FLOOR SURFACE PLANER MACHINE

HWS250 (5mm cutting path) has centralized weight and quality engineering to prevent it from “jumping out of cutting”. It is the most stable, robust and well-balanced 10-inch machine on the market today.

It has two models: 341 lbs 13 horsepower gasoline model and 385lbs 11 horsepower electric model. Due to its weight, it is heavier and more stable than most 10-inch scarifiers on the market today.

8” 250mm scarify floor maximum 450-650sq.ft. depth at 1/8” per pass per hour.
Chip traffic line at 800-1000 lineal ft per hour

APPLICATION

Grooving ramps, barns, walking areas.

Roughening concrete surfaces and asphalt.

Erasing traffic lines, paint stripes.

Milling of asphalt surfaces.

TECHNICAL SPECIFICATION

Model HWS250E HWS250G
Power 380-440 V 3~ /7.5kw(10hp) Gasoline 13hp
Working width 250mm / 10″ 250mm / 10″
Working depth 1-3mm 1-3mm
Drum rotation Down cut(clockwise) Down cut(clockwise)
Drum assembly Changeable Changeable
Drum of shaft 6pcs 6pcs
Drum of cutter 108pcs 108pcs
Machine weight 155kg(341lbs) 170kg(374lbs)
Machine size 1100*530*970mm 1100*530*970mm
Walking way Push model Push model

ADVANTAGES

Quick-change drum designs that allow you to switch or replace cutters in minutes.

The vibration of the concrete floor planer machine is relatively larger than the floor grinder. So all the spare parts and connections are strongly anti-vibration.

The front-mounted handle makes loading and unloading easily.

Drum is designed for heavy-duty milling, with a motor speed of 2800rpm.

Rod on drum perfectly matches the drum and would not break drum easily.

Tips on cutters are 4mm thickness, can be enlarged.

Vacuum port is 2”.

SCARIFIER CUTTERS

scarifier cutter
concrete scarifier drum

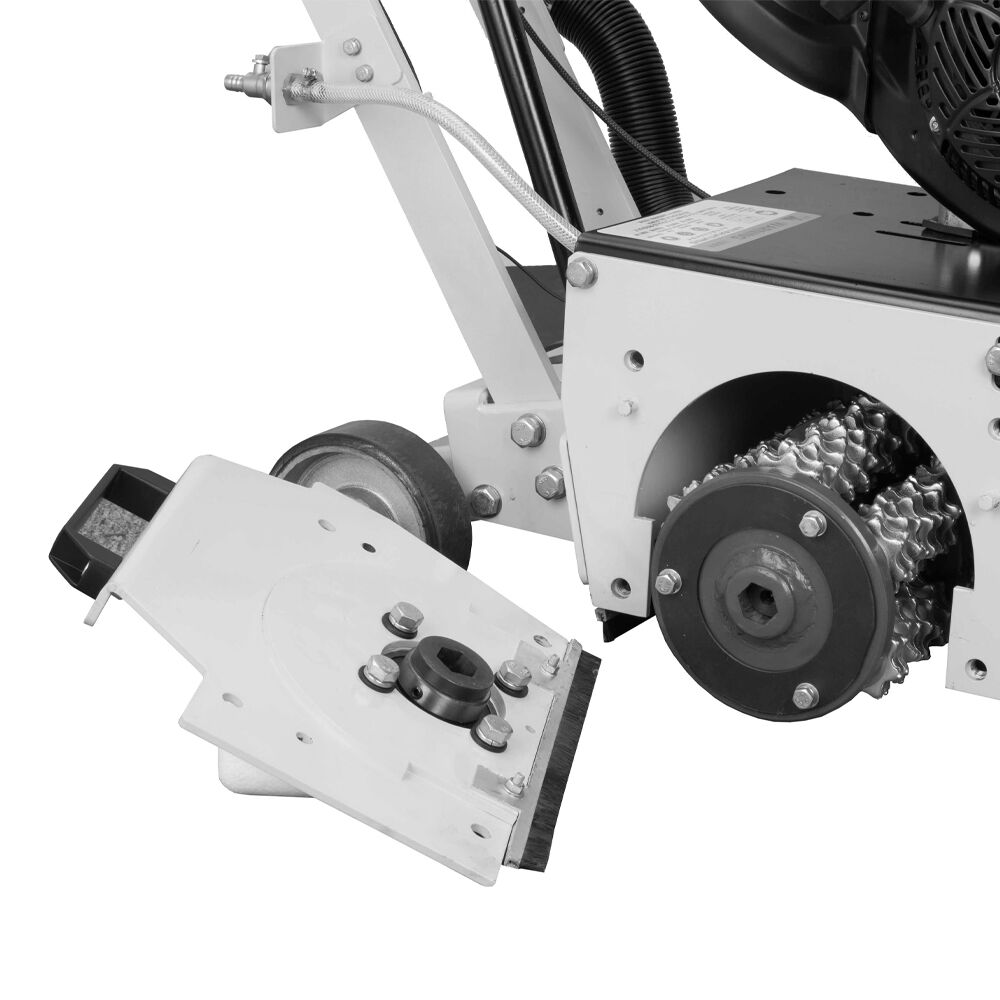

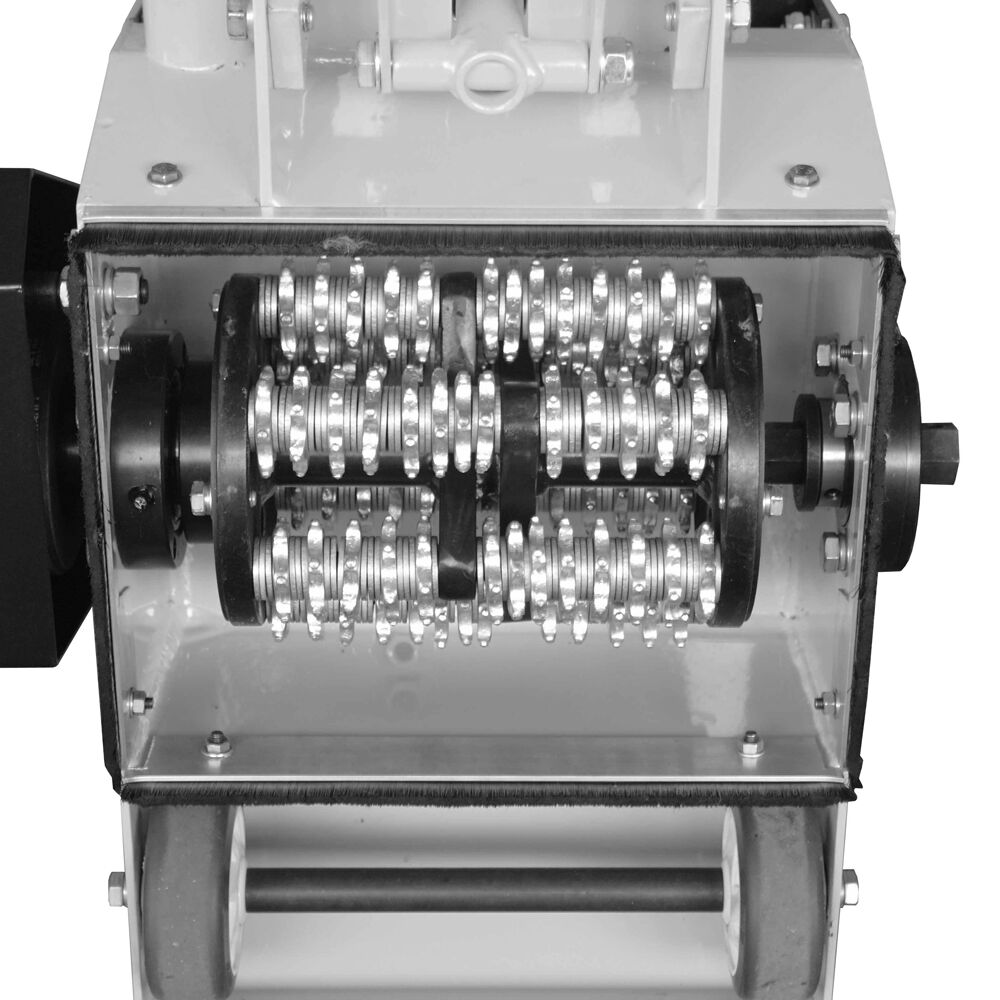

DRUM AND SHAFT

DOWDLOAD OUR GRINDING GUIDE!

Honway are a manufacturer of floorgrinding-, surfacefinishing and polishing equipment. We have a wide range of grinding and polishing machines and dust extractors.
