HWS300 FLOOR SCARIFYING MACHINE

KEY FEATURES

Working width: 300 mm; Working depth: 10 mm.

Original HONDA engine-the guarantee for the machine heart.

Hydrostatic transmission: American EATON with forward and reverse drive provides smooth speed changes.

The bearing base is designed to afford the high speed of the drum’s rotation.

HWS300 SELF-PROPELLED MODEL FLOOR SCARIFYING MACHINE

HONWAY has a series of floor scarifying machines, which should be chosen according to the size of the concrete slab, the depth of planning, etc.

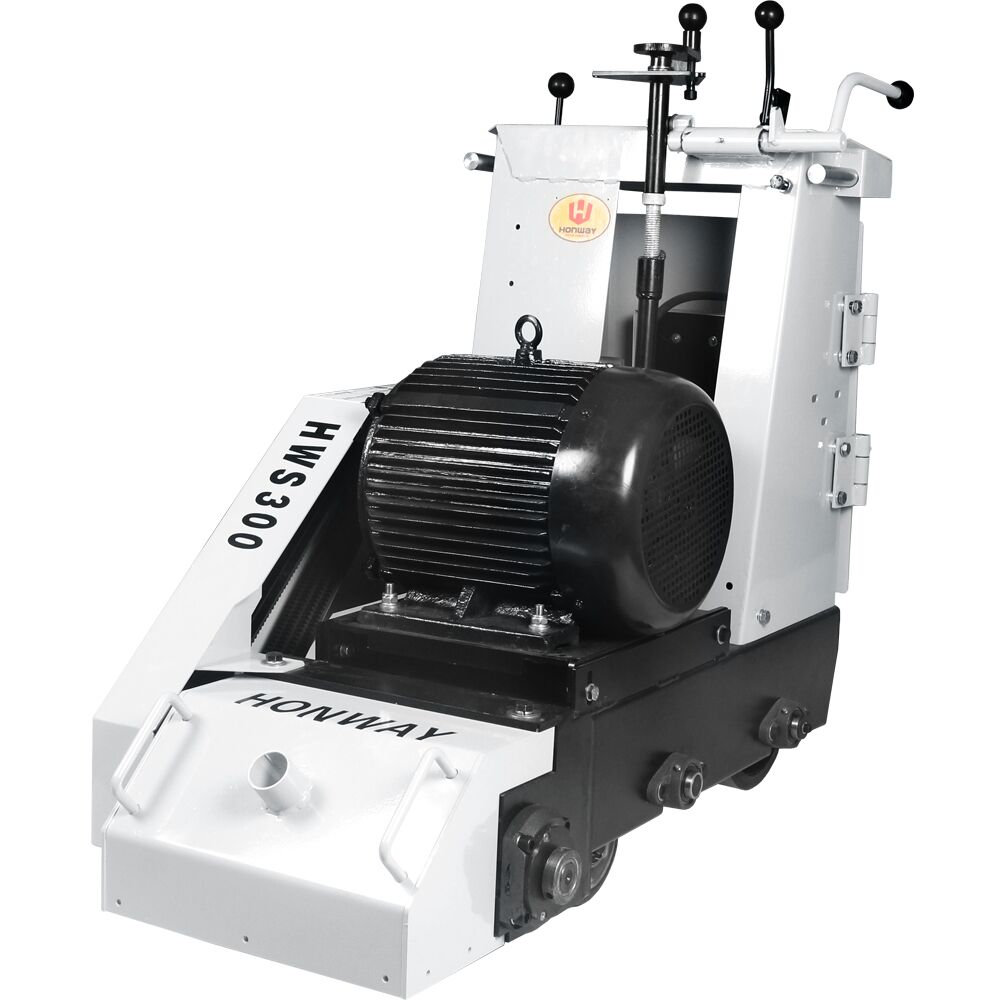

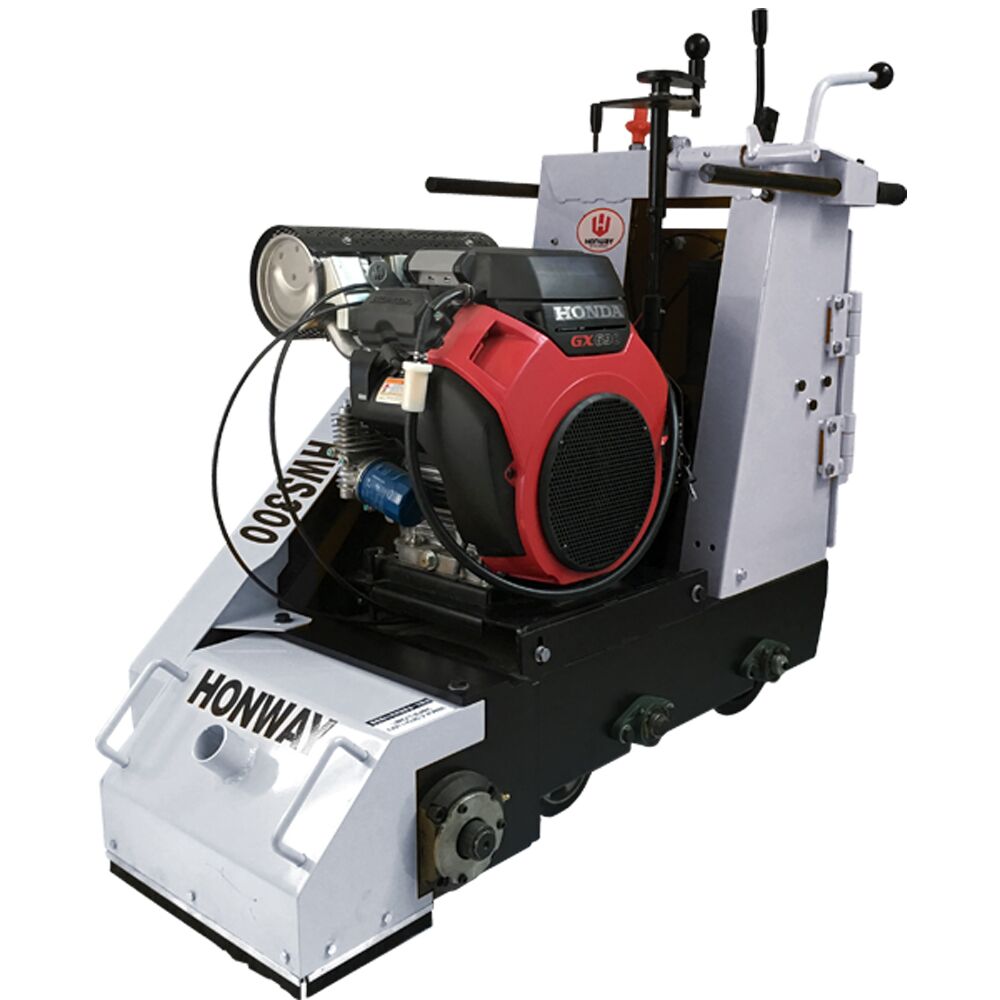

HWS300 walk behind concrete planer has 20hp Japan HONDA gasoline engine or electric motor, self-propelled model, American Eaton hydraulic transmission, working width 250mm, 108 pcs of TCT cutters.

The drum of the self-propelled concrete planer rotates counter-clockwise (not forward), so the machine needs a hydraulic motor to push it forward. The hydraulic system drives the scarifier machine forward and backward in a very smooth manner, improving working effectiveness and lessening operator fatigue.

Unlike the HWS200 push model concrete scarifier, the self-propelled walk-behind concrete planer rotates counter-clockwise (not forward), so the machine needs a hydraulic motor to push it forward. The hydraulic system drives the walk behind the scarifier machine forward and backward in a very smooth manner, which takes hard work from workers and makes the scarify concrete surface work effectively.

APPLICATION

Creating a non-slip surface.

Removing the even partly on concrete and asphalt, roadway, industrial plants, bridges, and epoxy resin.

Cleaning coating, dirt, oil, and traffic line, marks, etc.

Scarifying floor surface, for cohere the old layer.

TECHNICAL SPECIFICATION

Model HWS300E HWS300G
Power 380-440 V 3~ /11kw(15hp) Gasoline 20hp
Working width 250mm / 10″ 250mm / 10″
Working depth 1-15mm 1-15mm
Drum rotation Down cut(clockwise) Down cut(clockwise)
Drum assembly Changeable Changeable
Drum of shaft 6pcs 6pcs
Drum of cutter 108pcs 108pcs
Machine weight 379kg(835lbs) 329kg(725lbs)
Machine size 1020*670*1200mm 1020*670*1200mm
Walking way Hydraulic driving Hydraulic driving

ADVANTAGES

The scarifier head never leaves the floor surface while cutting forward or reverse, which increases production rates by 50%.

Forward and backward hydraulic transmission make the machine walk like a shop cart.

A quick-lift drum level, for the operator to level the drum easily.

The power source mounted above the drum eliminates vibration and maximizes surface contact.

Spheroidal Graphite Cast Iron wheels, wrapped by polyurethane, heavy-duty, wear-resisting, anti-vibration.

2” vacuum port for dust-free operation.

PAY ATTENTION TO HWS300 CONCRETE SCARIFYING MACHINE:

WHY THE BEARING OF THE WALK-BEHIND CONCRETE SCARIFIER MACHINE NEEDS TO GREASE WITHIN A FEW HOURS?

The working site for the floor scarifier concrete grinder is very bad, even if with the vacuum. Unlike the floor grinding machine, the bearing is exposed to abundant dust. Grease could prevent dust and lubrication. The broken bearing, in many cases, is not caused by the quality of bearing, but the usage habit. Grease must be given. Every machine has a grease gun when it leaves the factory.

SCARIFIER CUTTERS

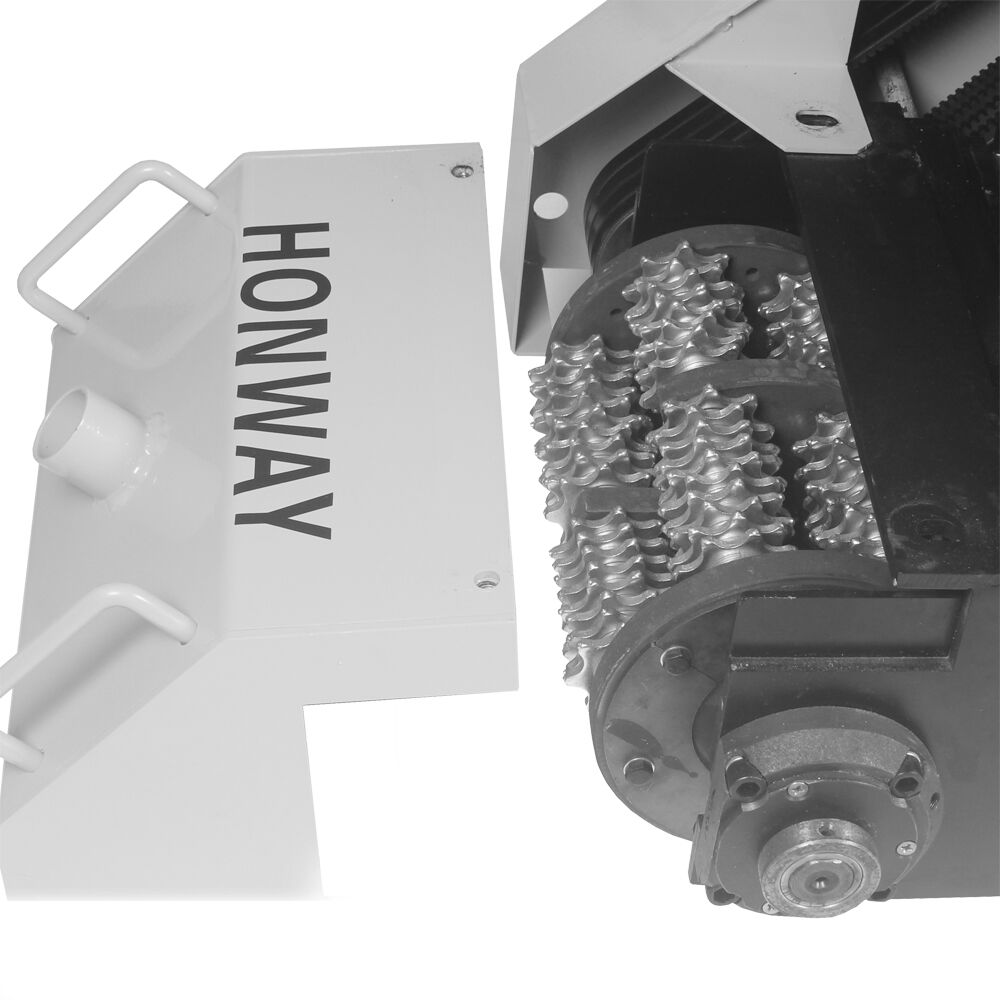

DRUM AND SHAFT
