Two motors, 2.4kw, 110v/220v, a single phrase;
Ametek motor, high quality, strong suction;
Two stage filter, HEPA;
Pull-down Longopac system for dust collection;

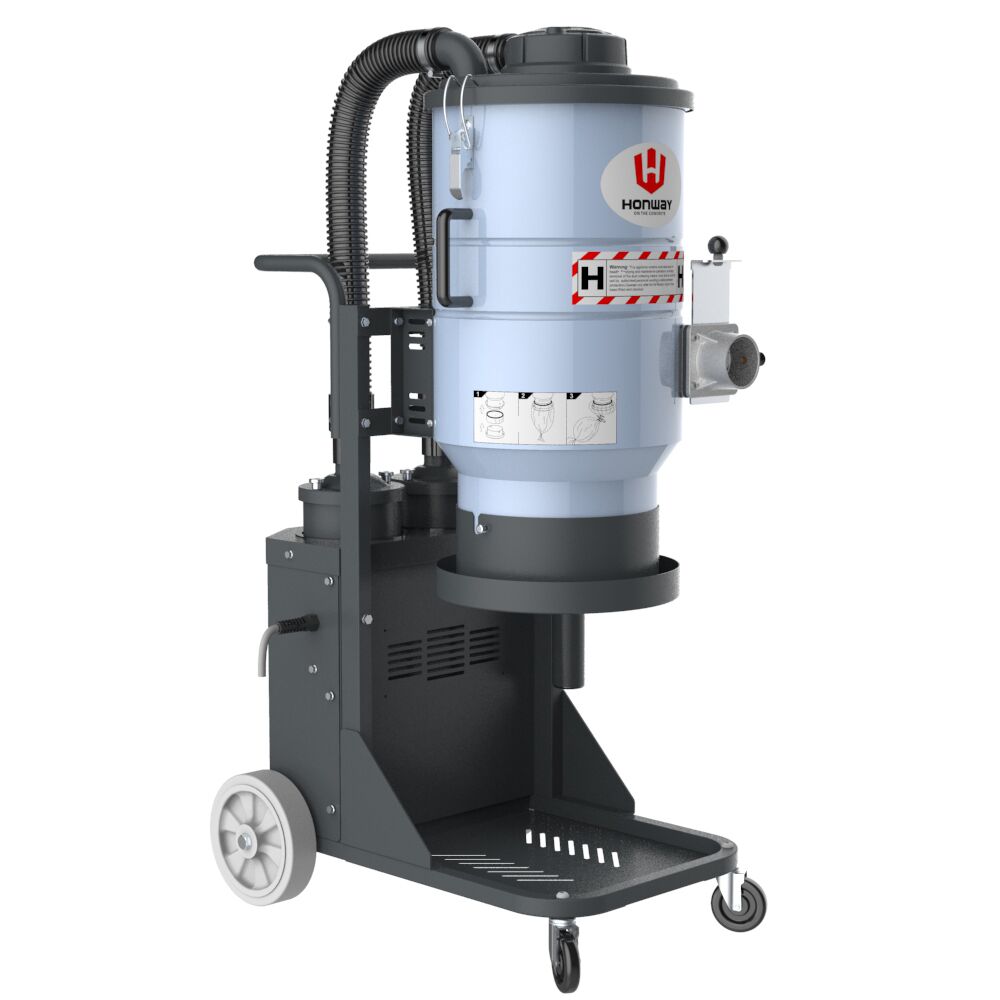

The Honway SP-D2 is a powerful 110v&220v dust extractor specially manufactured for middle-size floor preparation equipment. This OSHA approves dust extractor for Honway continuous bagging system with 60″, environment friendly and avoid contact with dust.
The filter area of the first-grade filter is 3.0 m2, and the H13 filter area is 2.4 m2. H13 filter is the final stage. Each HEPA filter has been individually tested and proven to have a minimum dust removal efficiency of> 99.99%@0.3μm, meeting new silica requirements.
| Model | A | B |
| Voltage | 220V,1P,50/60HZ | 110V,1P,60HZ |
| Power | 3.2HP/1.2KW | 3.2HP/2.4KW |
| Current | 8A | 16A |
| Air Flow | 236cfm | 236cfm |
| Vacuum | 220mbar | 220mbar |
| Premier Filter | 3.0m2 ﹥99.5%@1.0um | 3.0m2 ﹥99.5%@1.0um |
| Hepa Filter H13 | 2.4m2 ﹥99.99%@0.3um | 2.4m2 ﹥99.99%@0.3um |
| Filter Cleaning | Jet pulse filter cleaning | Jet pulse filter cleaning |
| Weight | 48kg/106lbs | 48kg/106lbs |
| Dust Type | Longapac | Longapac bag |
| Dimension | 570*710*1270mm | 570*710*1270mm |
| Hose Port | 50mm | 50mm |
1, H13 HEPA filter which conform to OSHA;
2, Continuous bagging system for a dustless working environment;
3,Jet pulse filter cleaning;
4, Compacted design, easy for transportation.
Honway are a manufacturer of floorgrinding-, surfacefinishing and polishing equipment. We have a wide range of grinding and polishing machines and dust extractors.
